RBS - Bandsaw

RBS - Bandsaw

Code: RBS

RBS 180 Gearbox Driven Bandsaw. Hydraulic down-feed, 180mm capacity, 2-speed motor, cooling system. Precise metal cutting with adjustable vise (0-45°).

Category:
BANDSAW

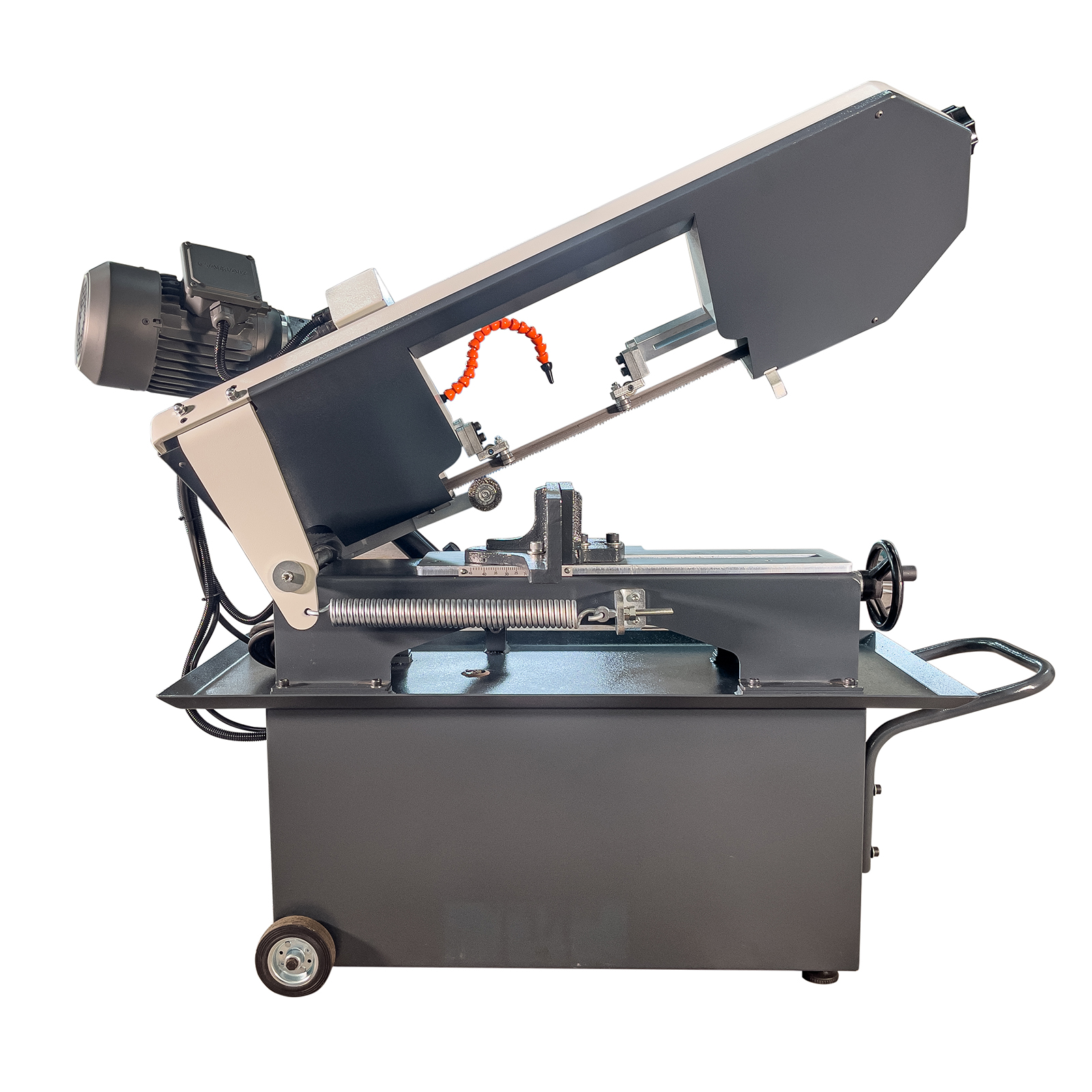

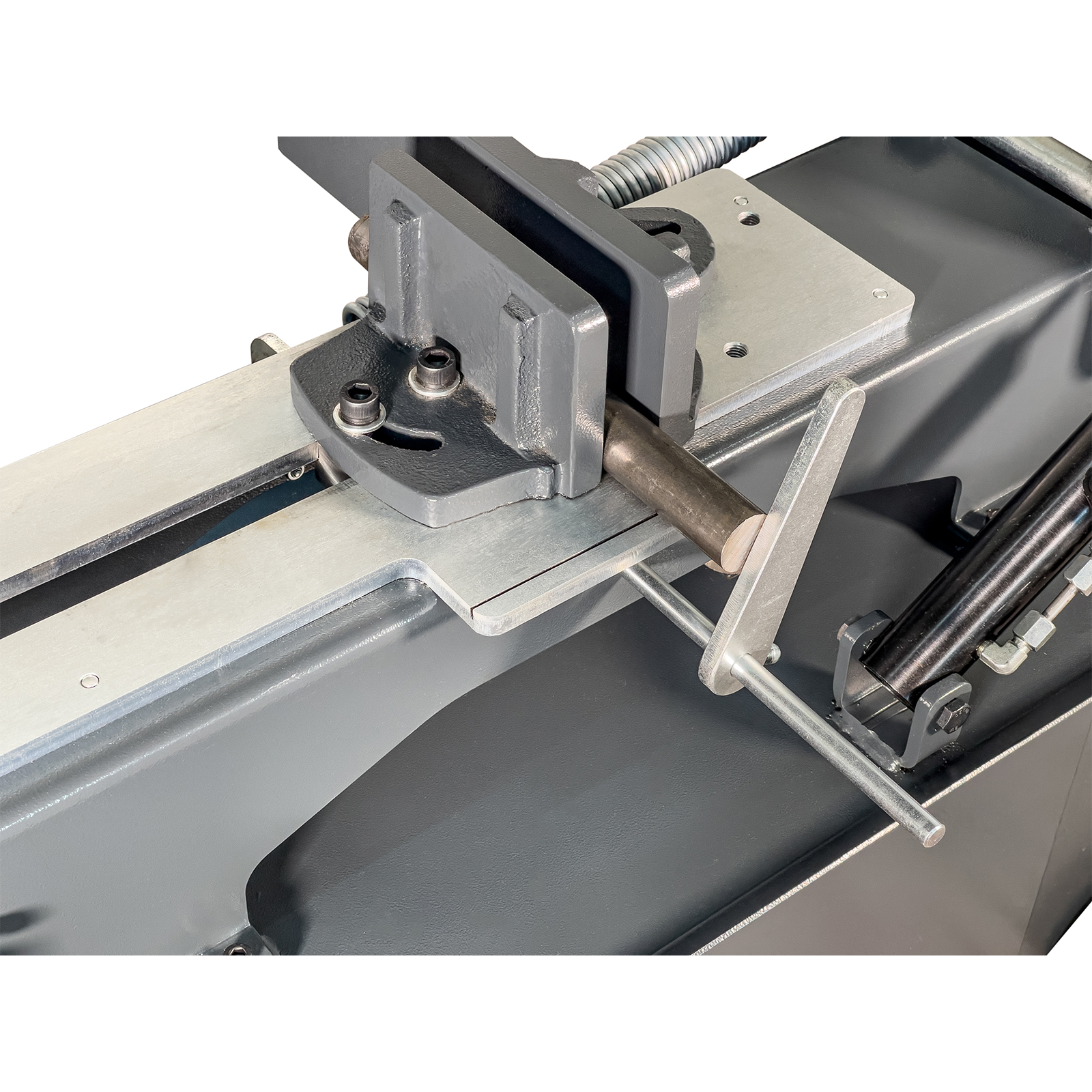

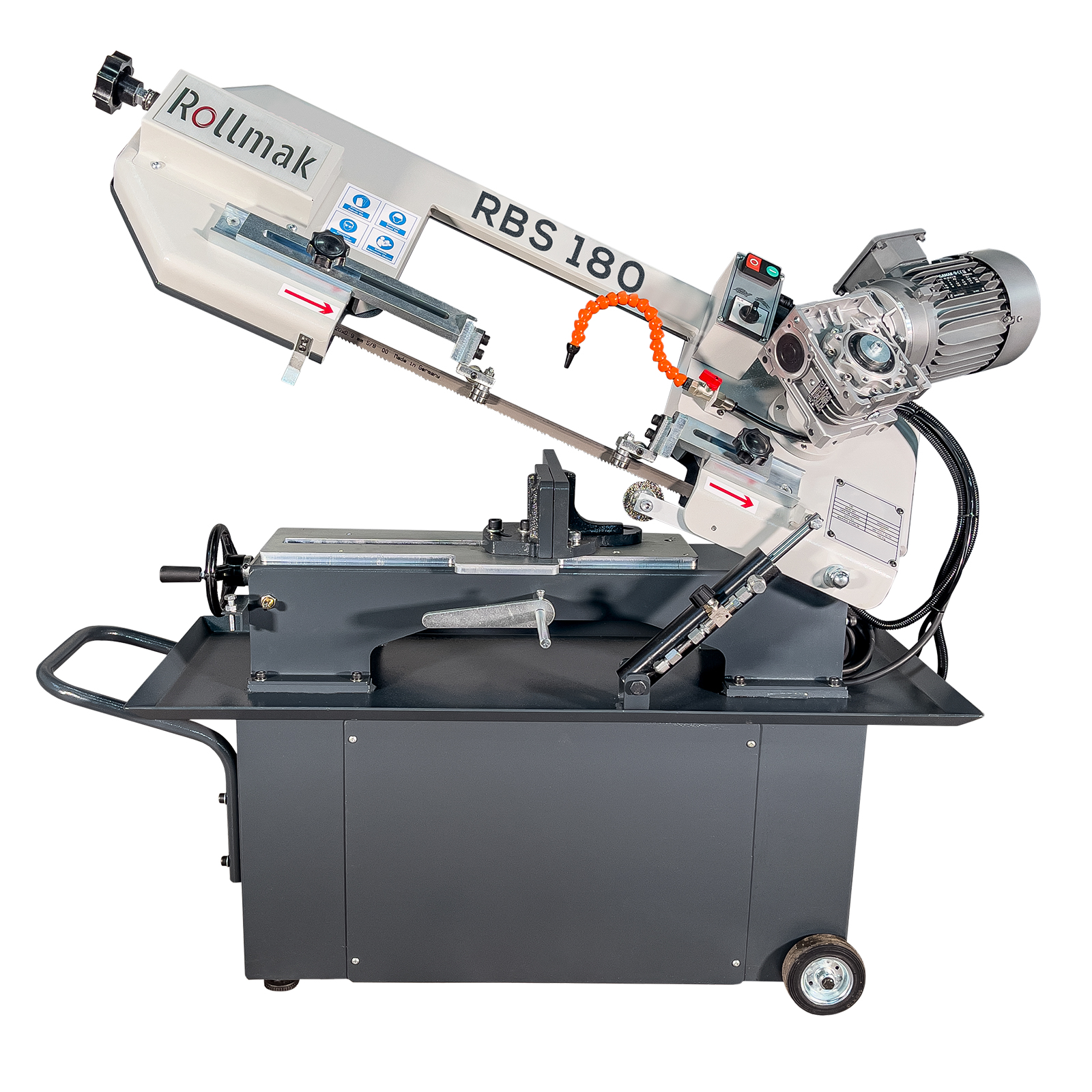

The RBS Series (RBS 180) is a professional gearbox-driven metal cutting bandsaw designed for precision and durability. It features a hydraulic cylinder for controlled head lowering (feeding) and a powerful 0.85 kW motor. With a cutting capacity of up to 180mm (round) and 305x180mm (rectangular), it offers 2-speed operation (35/70 rpm) and an integrated cooling pump. Angle cutting from 0° to 45° is easily adjusted via the vise.

MODEL Motor power Operation type Voltage Cutting Angle Cutting Angle Adjustment Head lowering speed Adjustment / Feeding Saw Blade Dimensions Cutting Capacity 90° Cutting Capacity 45° Speeds (2 level) Cooling Pump Cooling Tank Capacity Machine Dimensions (L x W x H) Net Weight
  kW type V ° type type mm mm mm rpm/min W L mm kg
RBS 180 0.85 kw Gearbox 400V (3phase) 0°- 45° From vise Hydraulic 19.09 x 0.9 x 2360 mm ◯:180mm
☐:180 x 305mm		 ◯:127mm
☐:120 x 125mm		 35 / 70 rpm/min 90 W 11L 1295 x 450 x 1060 mm 160Kg
