RLCC - Motorized Segmented Blades Box and Pan Folder

Code: RLCC

RLCC Motorized Segmented Folder. Welded steel frame, segmented blades for box/pan making, touch LC display. Precise and easy folding control.

Category:

FOLDING

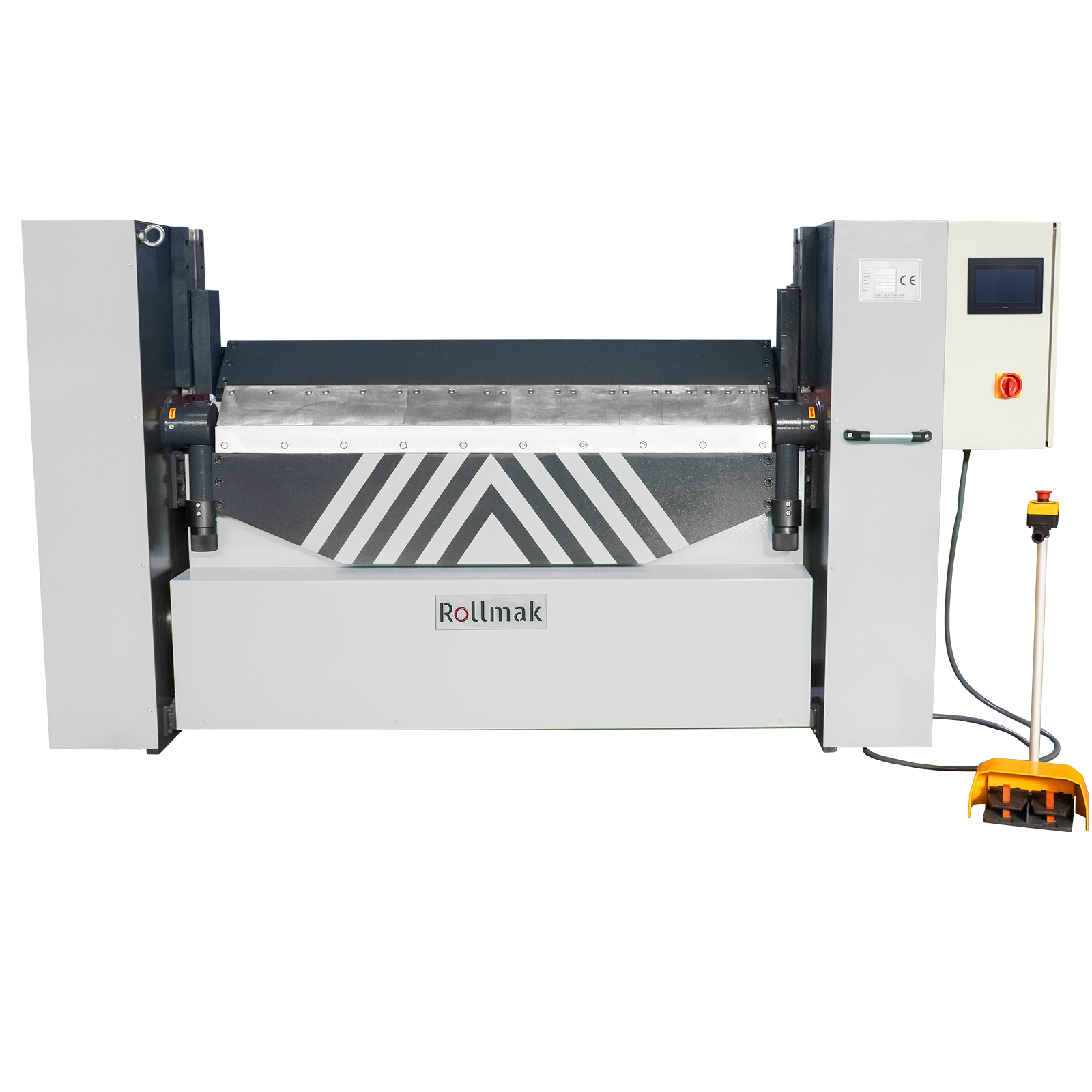

The RLCC is a Motorized Box and Pan Folder featuring a robust welded steel frame. Designed for versatility, it comes equipped with segmented blades of various sizes, enabling the manufacturing of boxes and pans in different dimensions. The machine offers a user-friendly experience with a touch LC display, allowing for quick and easy programming and operation cycles.

Standard Features

Frame with steel welded construction

Appropriate folding for manufacturing in different sizes thanks to segmented blades

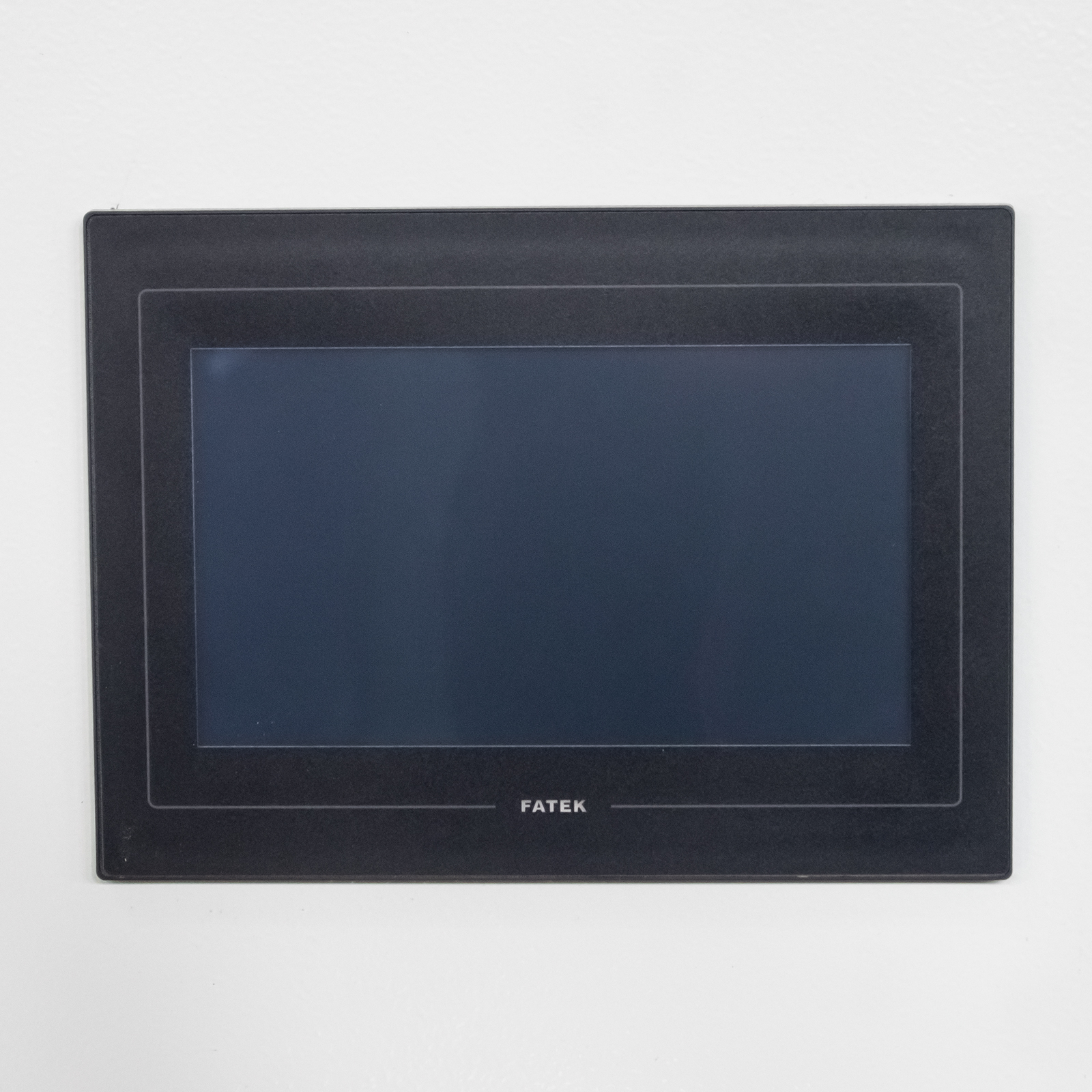

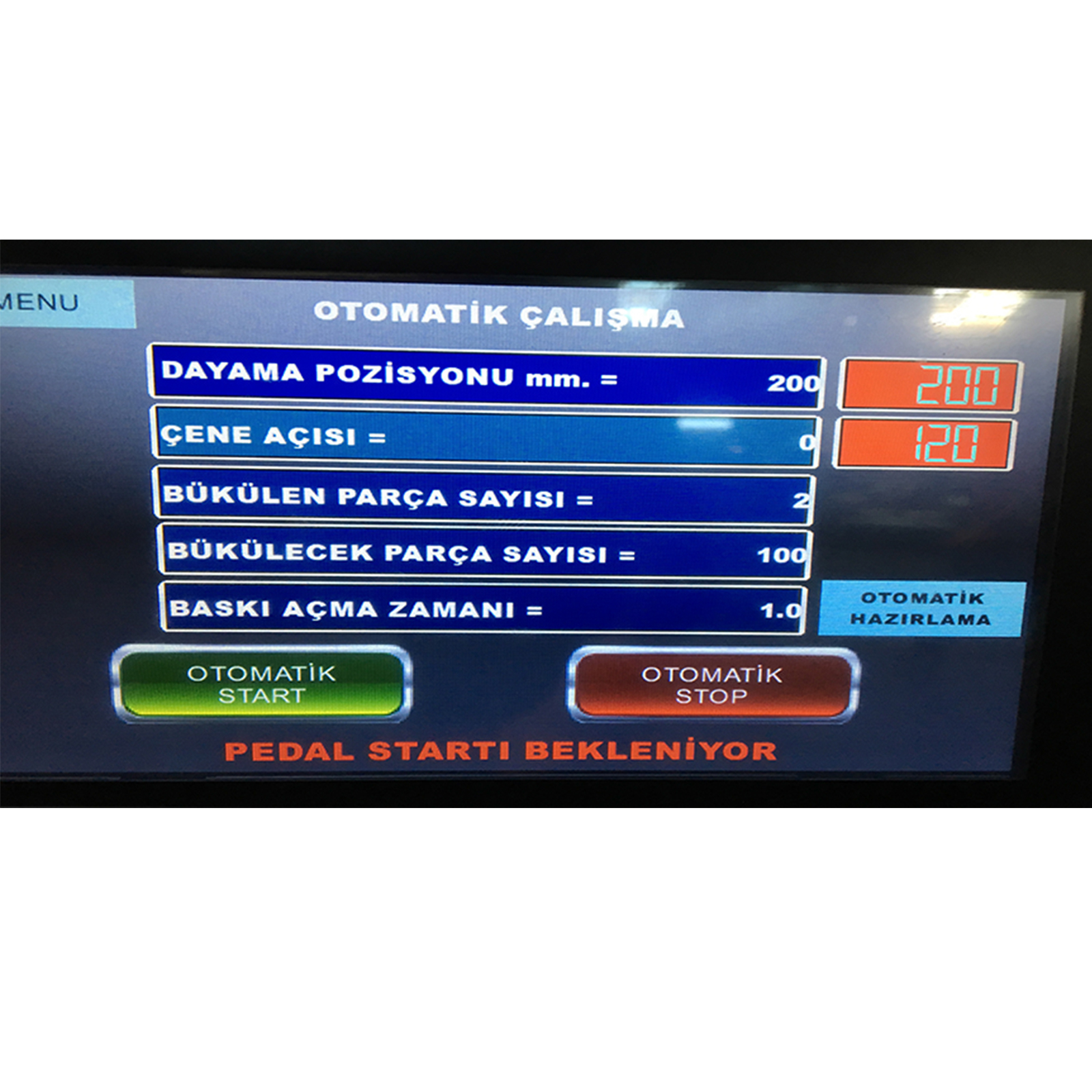

Quick and easy operation thanks to touch LC display

MODEL	Working Length	Bending Angle	Capacity	Pressing Motor	Folding Motor	Length	Width	Height	Weight
	mm	<°	mm	kW	kW	mm	mm	mm	kg
RLCC 1304	1300	135	4	0.75	4	1900	600	1700	1380
RLCC 1503	1500	135	3	0.75	4	2300	600	1700	1850
RLCC 2002	2000	135	2	0.75	4	2800	600	1700	2650
RLCC 2515	2500	135	1.5	0.75	4	3300	600	1700	3100
