RPB - CNC Hydraulic Press Brake

RPB - CNC Hydraulic Press Brake

Code: RPB

RPB CNC Hydraulic Press Brake. Stress-relieved steel frame, precise hydraulic system, hard-chrome pistons, and heavy-duty backgauge for perfect bending.

Category:
PRESS BRAKES

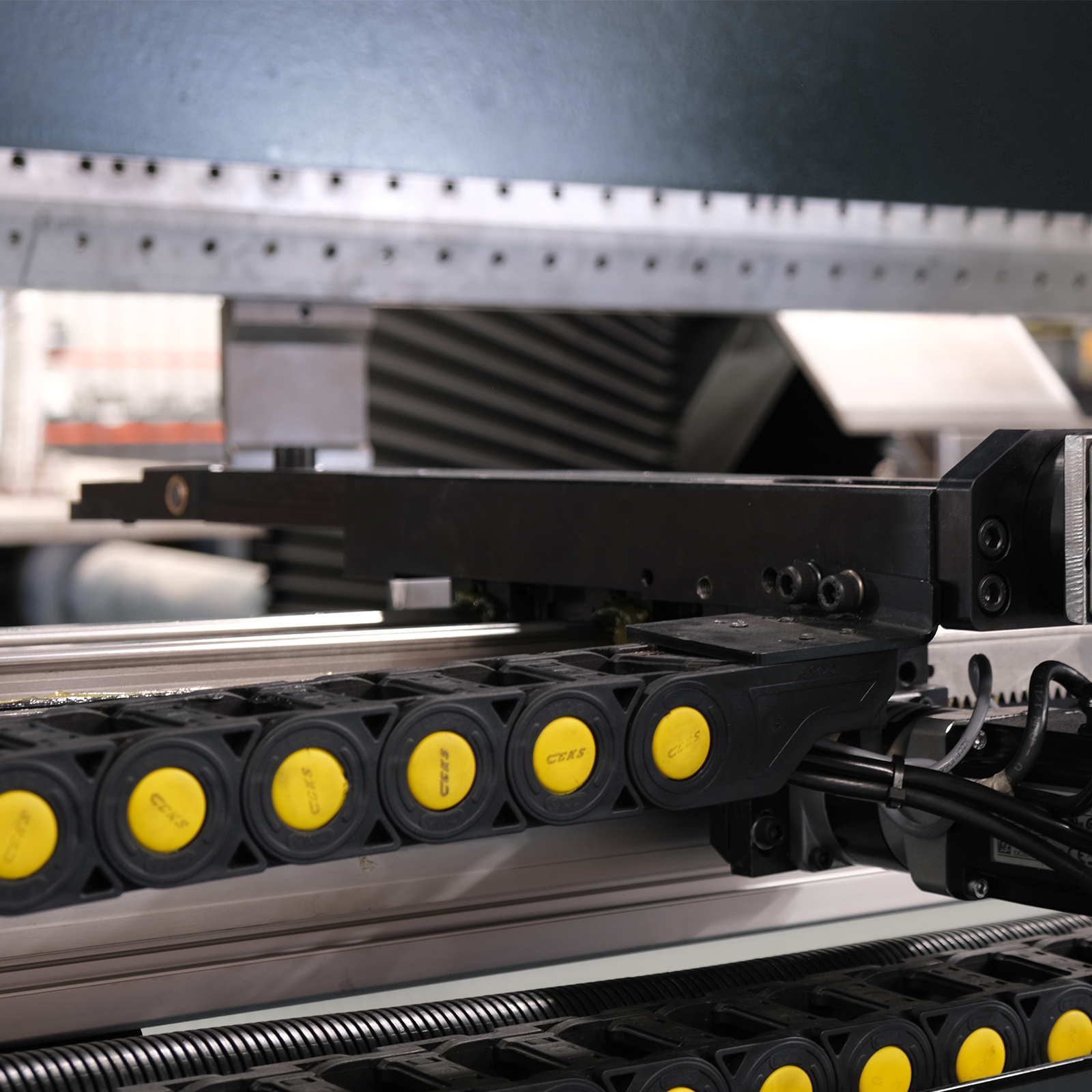

The RPB CNC Hydraulic Press Brake features a high-precision, stress-relieved welded steel frame designed to eliminate stress concentrations and prevent micro-cracks. It ensures minimum deflection with optimized upper and lower beam inertia. Equipped with 2-micron honed double-acting hydraulic cylinders, hard chrome-plated pistons, and low-friction adjustable guides, it delivers perfect synchronization, precise positioning, and high repeatability. The heavy-duty backgauge system ensures reliable operation under harsh conditions.

MODEL Capacity Motor Oil Tank Approach Speed Working Speed Return Speed Approx Weight Bending Length Inside Frames Side Frame Width Bed Height Daylight Opening Stroke Table Width Throat Gap
  kN kW Lt mm/s mm/s mm/s Ton mm mm mm mm mm mm mm mm

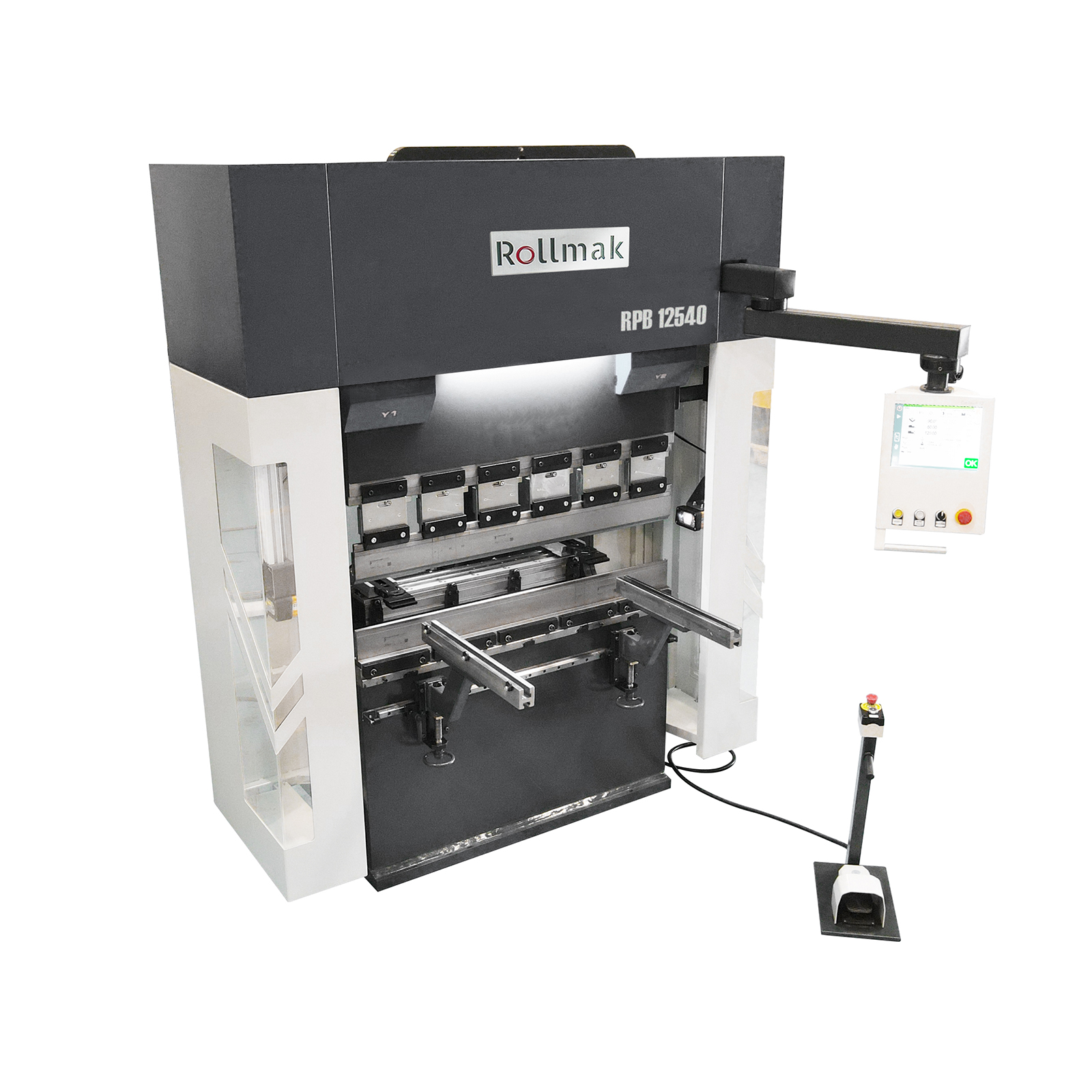

RPB 12540 400 4 80 160 10 130 3.3 1250 1070 1470 800 455 215 60 140
RPB 2160 600 5.5 140 150 10 130 5.4 2100 1600 1580 880 475 210 60 410
RPB 2690 900 7.5 140 150 10 130 7.1 2600 2050 1580 880 540 260 60 410
RPB 3190 900 7.5 140 160 10 130 7.9 3100 2550 1590 880 530 260 60 410
RPB 31120 1200 11 140 160 10 130 8.4 3100 2550 1590 880 540 260 60 410
RPB 31160 1600 15 210 160 10 130 9.7 3100 2550 1600 880 540 260 60 410

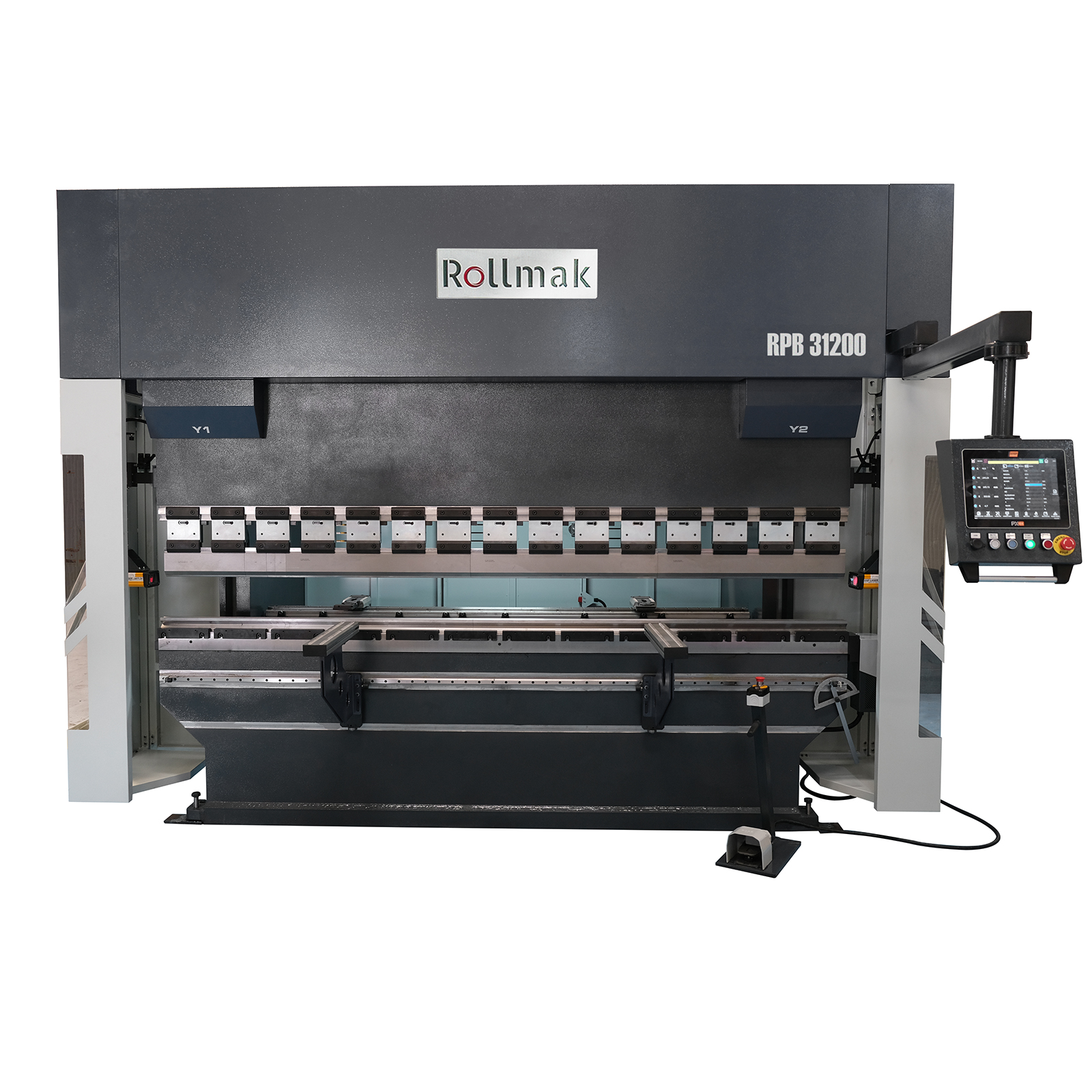

RPB 31200 2000 19 210 150 10 130 10 3100 2550 1600 880 530 260 90 410
RPB 31240 2400 22 210 130 10 120 11 3100 2550 1610 880 530 260 90 410
RPB 31300 3000 22 280 110 8 100 15 3100 2550 1815 905 660 320 380 500
RPB 31440 4400 30 450 80 8 70 22 3100 2550 2060 1005 575 320 450 500
RPB 41160 1600 15 210 170 10 120 12 4100 3550 1600 880 530 260 60 410
RPB 41200 2000 18.5 210 160 10 110 12.5 4100 3550 1600 880 530 260 90 410
RPB 41240 2400 22 210 150 10 100 14 4100 3550 1610 880 530 260 90 410
RPB 41300 3000 22 280 120 8 90 18.5 4100 3550 1820 980 635 320 280 500
RPB 41440 4400 30 450 80 8 70 26 4100 3550 2235 955 590 320 380 500
RPB 61240 2400 22 300 140 10 100 25 6100 5100 1960 1100 500 260 90 500
RPB 61300 3000 22 300 120 8 70 30 6100 5100 2060 1115 560 320 200 500
RPB 61380 3800 30 450 90 8 70 35 6100 5100 2210 1100 570 320 240 500
RPB 61440 4400 30 450 90 8 70 39 6100 5100 2250 1100 570 320 280 500
RPB 61600 6000 37 500 80 7 70 55 6100 5100 2400 1050 620 360 380 500
