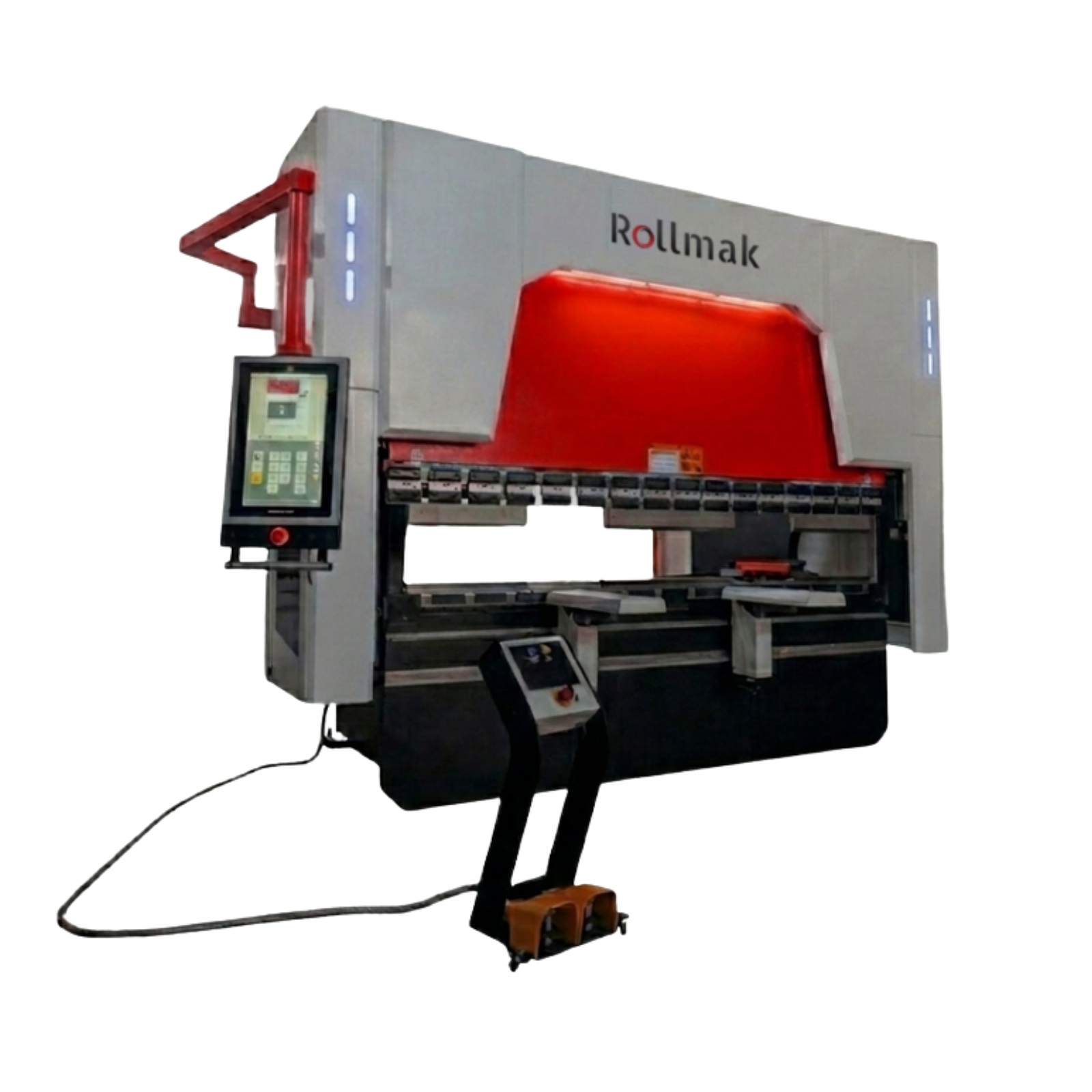

H-RPB - CNC Hydraulic Press Brake

H-RPB - CNC Hydraulic Press Brake

Code: H-RPB

The Hybrid press brake offers up to 70% energy savings, requires 50% less oil, and operates silently. The ultimate eco-friendly CNC bending solution.

Category:
PRESS BRAKES

Hybrid press brake is our innovative solution for this decade’s most pressing issue… soaring energy costs. Every manufacturer is observing the effects of energy prices that are on a continuous rise, and to be more efficient in a production environment is not only beneficial but crucial to survive.

For this reason, we have developed Hybrid, a hybrid press brake that uses a servo motor and servo pump with variable oil flow control instead of the traditional AC motors and fixed flow pumps. With this advanced hydraulic system, our customers will have three key benefits compared to traditional hydraulic press brakes:

Hybrid consumes up to 70% less energy compared to traditional hydraulic press brakes.
Hybrid requires up to 50% less hydraulic oil to run compared to traditional hydraulic press brakes. The lifetime of the hydraulic oil is also much longer (up to two times) since oil only circulates in the system during actual bending, as opposed to continuous oil circulation on traditional hydraulic press brakes even when idle. Also, no oil coolant is required for Hybrid even in the most demanding production environments.
Silent operation of the machine (up to 15 dB lower sound levels) compared to traditional hydraulic press brakes.

Standard Features

Rigid frame designed on SolidWorks with stress and deflection analysis. welded by certified welders and machined to 0.01 mm precision in single piece

Step Automation RK 15 (15” 2D) graphic touchscreen control

Dependable servo hydraulic system with servo motors and servo pumps provided by HAWE

Honed. chrome covered cylinders with high precision ground pistons

Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend

2 axis aluminium extrusion backgauge (X.R) running on ballscrews and double linear guides with servo motors to easily gauge parts

European and/or American style punch clamps

European die holder with quick change mechanism

Manual crowning of die bed for even angles along full length of bend

High stroke (280 mm) and daylight (520 mm) for deep box/panel bending

500 mm throat depth to utilize full length and deep bends

High resolution linear scales with an accuracy of 0.01 mm for precise bending

Front support arms sliding on linear guides to easily gauge small parts

Optional Features

Next 3.0 3D CNC Controller

Front laser guards for finger protection

Automatic crowning of die bed for even angles along full length of bend

Custom design throat. stroke and daylight

Large selection of punches and dies

Tandem preparation

Automatic lubrication system

TYPE Bending Length Bending Tonnage Stroke Distance Between Frames Distance Between Feets Y-Axis Descent Speed Y-Axis Pressing Speed Y-Axis Return Speed X-Axis Stroke R-Axis Stroke X-Axis Speed R-Axis Speed Engine Oil Tank These are the machine shipping dimensions. T. Depth Table Height Table Width Weight
Length Machine Width Height Width
A
mm		 Ton I
mm		 J
mm		 B
mm		 mm/sec mm/sec mm/sec mm mm mm/sec mm/sec kw lt L
mm		 D
mm		 G
mm		 E
mm		 H
mm		 F
mm		 K
mm		 kg
H-RPB 2100-100 2100 100 280 520 1650 200 10 200 800 250 500 170 2x6 2x34.5 3050 1750 2900 2250 500 860 90 6750
H-RPB 2600-100 2600 100 280 520 2100 200 10 200 800 250 500 170 2x6 2x34.5 3450 1750 2900 2250 500 860 90 7300
H-RPB 2600-135 2600 135 280 520 2100 200 10 200 800 250 500 170 2x6 2x34.5 3450 1750 2900 2250 500 860 90 7800
H-RPB 2600-175 2600 175 280 520 2100 200 10 200 800 250 500 250 2x7.5 2x55 3500 1850 3050 2300 500 930 90 9350
H-RPB 3100-100 3100 100 280 520 2550 200 10 200 800 250 500 250 2x6 2x34.5 4100 1750 2900 2250 500 860 90 7900
H-RPB 3100-135 3100 135 280 520 2550 200 10 200 800 250 500 250 2x6 2x34.5 4100 1750 2900 2250 500 860 90 8300
H-RPB 3100-175 3100 175 280 520 2550 200 10 200 800 250 500 250 2x7.5 2x55 4150 1850 3050 2300 500 930 90 10000
H-RPB 3100-220 3100 220 280 520 2550 180 10 180 800 250 500 250 2x7.5 2x55 4150 1850 3050 2300 500 930 90 11100
H-RPB 3700-135 3700 135 280 520 3100 200 10 200 800 250 500 170 2x6 2x34.5 4700 1750 2900 2250 500 860 90 9250
H-RPB 3700-175 3700 175 280 520 3100 200 10 200 800 250 500 170 2x7.5 2x55 4750 1850 3050 2300 500 930 90 11250
H-RPB 3700-220 3700 220 280 520 3100 180 10 180 800 250 500 170 2x7.5 2x55 4750 1850 3050 2300 500 930 90 12650
H-RPB 4100-135 4100 135 280 520 3550 200 10 200 800 250 500 170 2x6 2x34.5 5100 1750 2900 2250 500 860 90 10100
H-RPB 4100-175 4100 175 280 520 3550 200 10 200 800 250 500 170 2x7.5 2x55 5150 1850 3050 2300 500 930 90 12350
H-RPB 4100-220 4100 220 280 520 3550 180 10 180 800 250 500 170 2x7.5 2x55 5150 1850 3050 2300 500 930 90 13900
