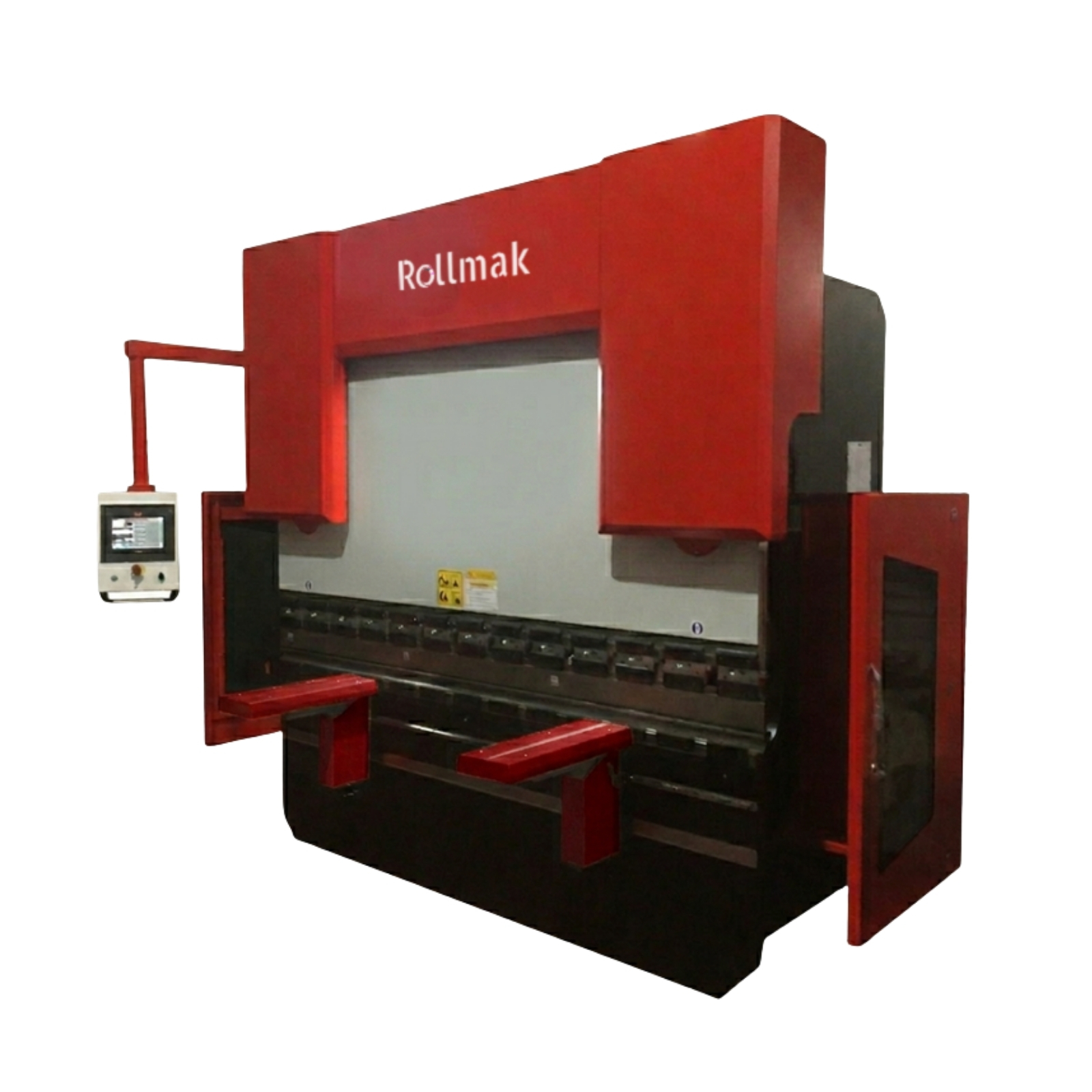

S-RPB - CNC Hydraulic Press Brake

S-RPB - CNC Hydraulic Press Brake

Code: S-RPB

SilverForm entry-level press brake is the ideal budget solution for simple bending. Features a large throat depth, high stroke, reliable hydraulics, and high precision.

Category:
PRESS BRAKES

SilverForm is designed and built for customers who process simple parts and do not need to run their press brake for more than a couple of hours a day. Easy to use control and simple operation of EasyForm makes it convenient for customers who require a budget solution for their simple bending requirements.

SilverForm is an entry level press brake but by sharing the same modular structure with GoldForm, it makes no compromise on quality, consistency and dependability.

Customers that choose SilverForm will enjoy a large throat depth, high stroke and daylight for deep box bendings, dependable hydraulic system and high precision linear scale system.

Standard Features

Rigid frame designed on SolidWorks with stress and deflection analysis. welded by certified welders and machined to 0.01 mm precision in single piece

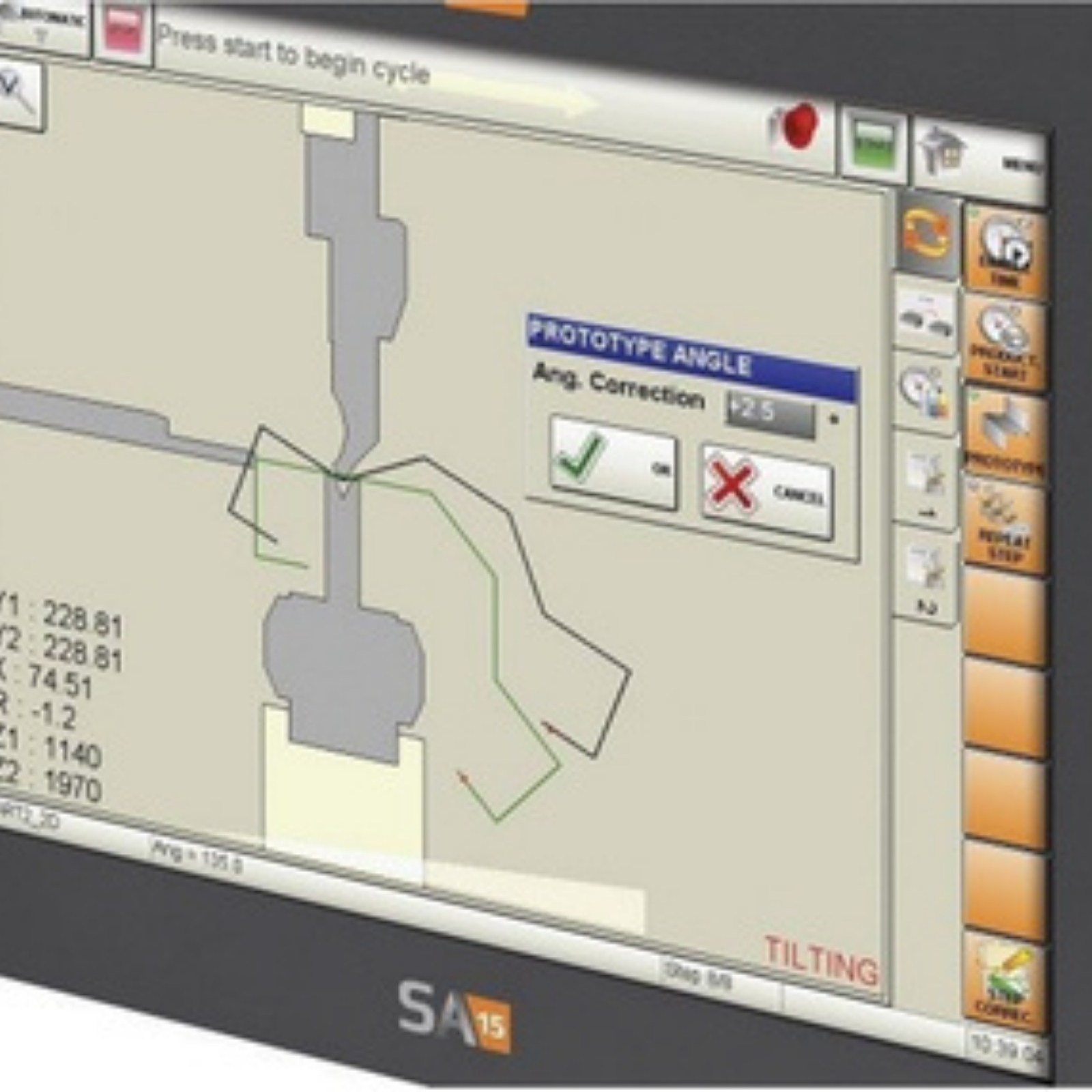

NexT 1.0 10” touchscreen control with 2D visualization

Dependable servo hydraulic system

Honed. chrome covered cylinders with high precision ground pistons

Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend

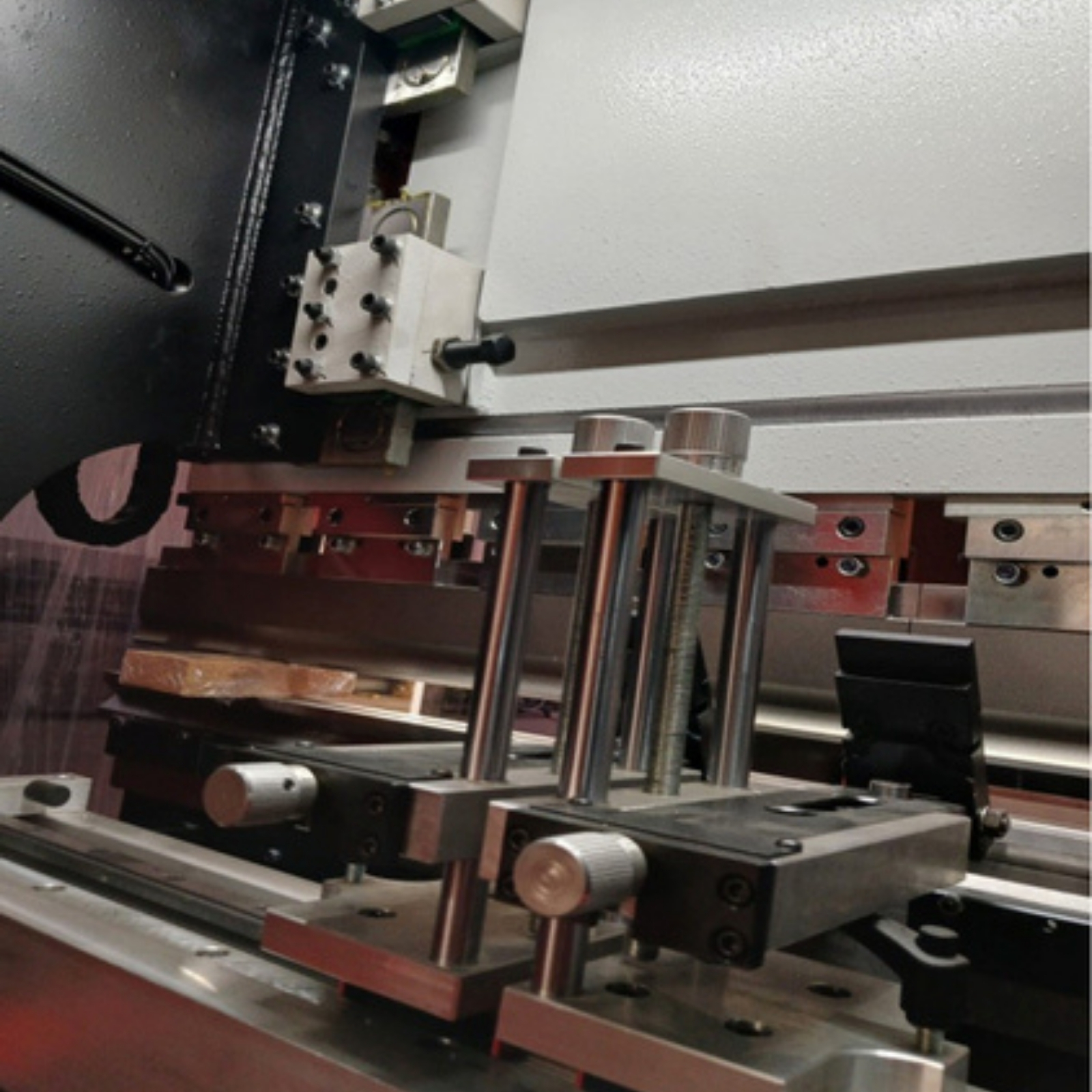

Single axis backgauge (X) with manual height adjustment. running on ballscrews for maximum accuracy

European and/or American style quick release punch clamps

European die holder with quick change mechanism

Full length precision ground and hardened punch and 4V die set

High stroke and daylight for deep box/panel bending

500 mm throat depth to utilize full length and deep bends

High resolution linear scales with an accuracy of 0.01 mm for precise bending

Front support arms sliding on linear guides to easily gauge small parts

Optional Features

Front laser guards for finger protection

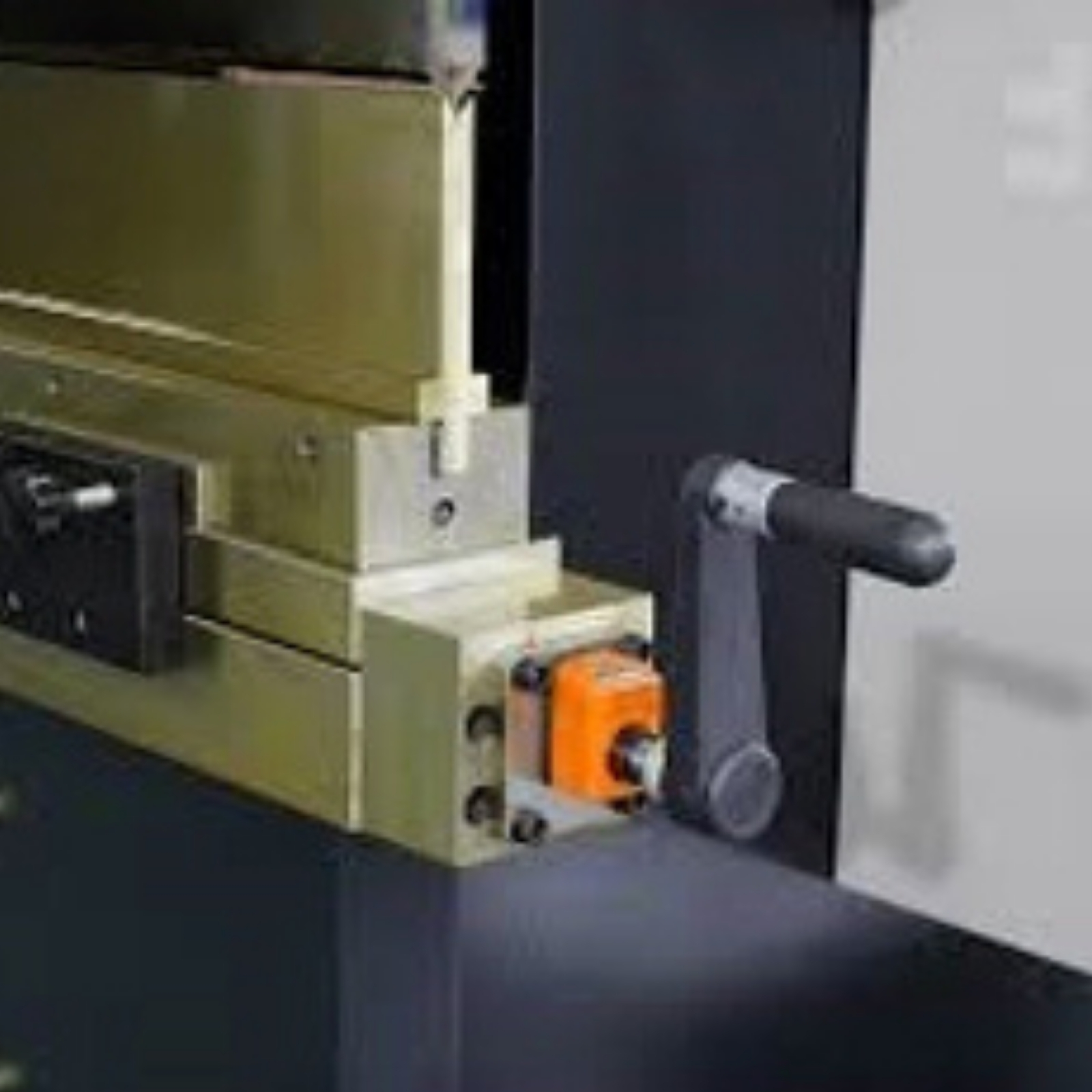

Manual crowning of die bed for even angles along full length of bend

Automatic crowning of die bed for even angles along full length of bend

Custom design throat. stroke and daylight

Large selection of punches and dies

TYPE Bending Length Bending Tonnage Stroke Distance Between Frames Distance Between Feets Y-Axis Descent Speed Y-Axis Pressing Speed Y-Axis Return Speed X-Axis Stroke R-Axis Stroke X-Axis Speed R-Axis Speed Engine Oil Tank These are the machine shipping dimensions. T. Depth Table Height Table Width Weight
Length Machine Width Height Width
A
mm		 Ton I
mm		 J
mm		 B
mm		 mm/sec mm/sec mm/sec mm mm mm/sec mm/sec kw lt L
mm		 D
mm		 G
mm		 E
mm		 H
mm		 F
mm		 K
mm		 kg
S-RPB 1250-40 1250 40 140 380 1050 180 10 160 800 250 500 170 5.5 100 2150 2100 2350 2400 300 860 90 3100
S-RPB 1250-60 1250 60 180 420 1050 180 10 160 800 250 500 170 7.5 100 2250 2100 2350 2450 400 860 90 3650
S-RPB 1550-40 1550 40 140 380 1250 180 10 160 800 250 500 170 5.5 100 2400 2100 2200 2400 300 860 90 3300
S-RPB 1550-60 1550 60 180 420 1250 180 10 160 800 250 500 170 7.5 100 2430 2100 2350 2450 400 860 90 4100
S-RPB 2100-40 2100 40 140 380 1650 180 10 160 800 250 500 170 5.5 100 2800 1950 2200 2100 300 860 90 4050
S-RPB 2100-60 2100 60 180 420 1650 180 10 160 800 250 500 170 7.5 100 2820 2100 2350 2250 400 860 90 4400
S-RPB 2600-100 2600 100 280 520 2100 180 10 160 800 250 500 170 11 250 3450 1750 2830 2250 500 860 90 7250
S-RPB 2600-135 2600 135 280 520 2100 180 10 160 800 250 500 170 11 250 3450 1750 2830 2250 500 860 90 7750
S-RPB 3100-100 3100 100 280 520 2550 180 10 160 800 250 500 170 11 250 4000 1750 2830 2250 500 860 90 7850
S-RPB 3100-135 3100 135 280 520 2550 180 10 160 800 250 500 170 11 250 4000 1750 2830 2250 500 860 90 8100
S-RPB 3100-175 3100 175 280 520 2550 180 10 160 800 250 500 170 15 250 4000 1850 2960 2300 500 930 90 9850
S-RPB 3100-220 3100 220 280 520 2550 180 10 160 800 250 500 170 15 250 4000 1850 2960 2300 500 930 90 11250
S-RPB 3100-300 3100 300 300 540 2550 180 10 160 800 250 500 170 22 250 4000 2100 3050 2600 500 930 120 14750
S-RPB 3700-135 3700 135 280 520 3100 180 10 160 800 250 500 170 11 250 4450 1750 2830 2250 500 860 90 9150
S-RPB 3700-175 3700 175 280 520 3100 180 10 160 800 250 500 170 15 250 4500 1850 2960 2300 500 930 90 11650
S-RPB 3700-220 3700 220 280 520 3100 180 10 160 800 250 500 170 15 250 4500 1850 2960 2300 500 930 90 12750
S-RPB 3700-300 3700 300 300 540 3100 180 10 160 800 250 500 170 22 250 4550 2100 3050 2600 500 930 120 15850
