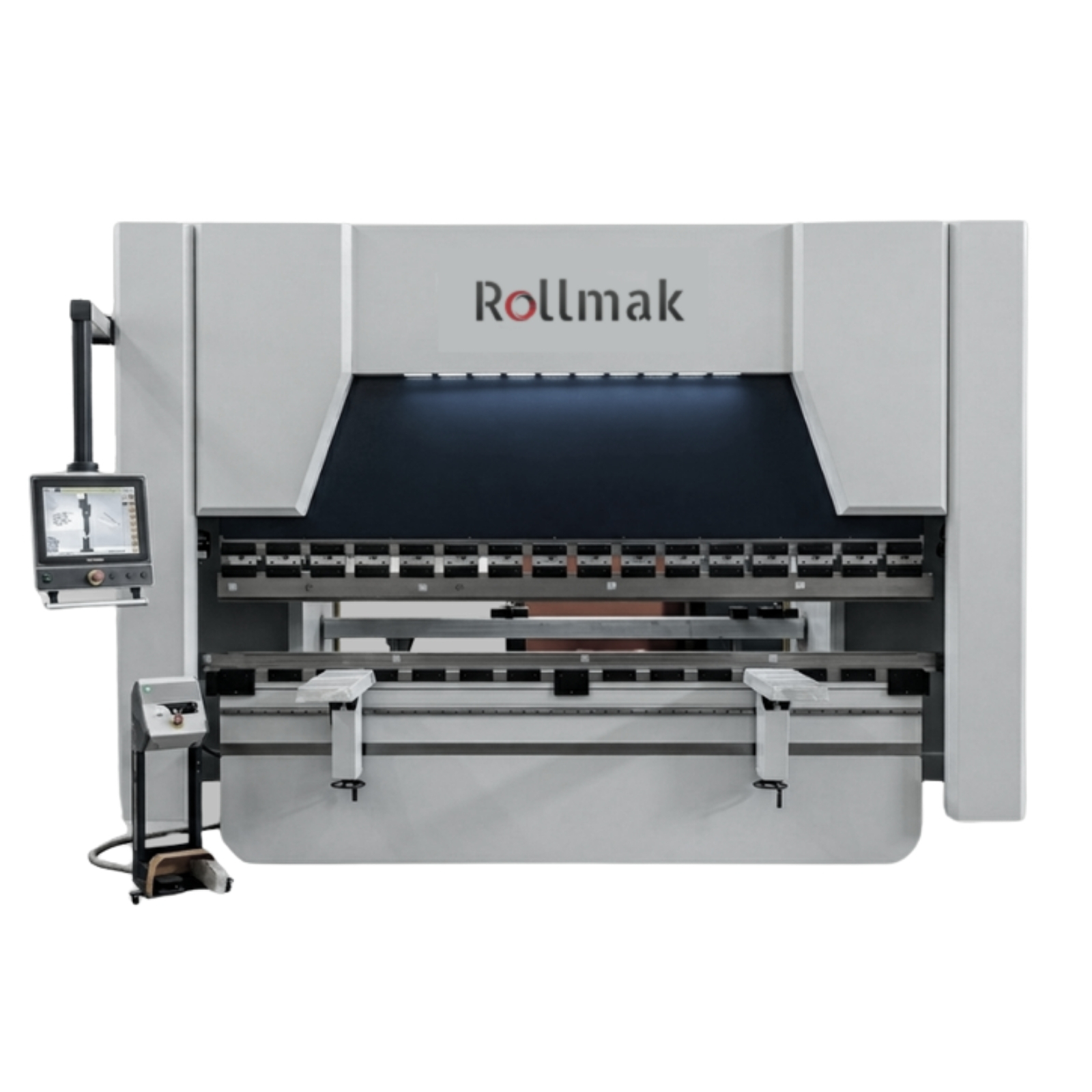

D-RPB - CNC Hydraulic Press Brake

D-RPB - CNC Hydraulic Press Brake

Code: D-RPB

DiamondForm is a versatile press brake for low to medium volume production. Features precise servo hydraulics, an editable material database, and automatic springback compensation.

Category:
PRESS BRAKES

DiamondForm is a versatile press brake designed to be utilized in low to medium volume/ medium to high mix environments. It is an ideal press brake for customers that need frequent setups for their production but do not run products with uneven flanges or tapered edges that would require a six axis backgauge.

Whether you want to form a part by air bending, bottoming or hemming, DiamondForm’s advanced angle calculation formula, precise servo hydraulic system and electronic linear scales ensure you get the right part every time.

The editable material database on DiamondForm lets you add as many material as you want and even allows you to enter the springback of the material so the control can autocorrect angles to compensate for springback.

Standard Features

Rigid frame designed on SolidWorks with stress and deflection analysis. welded by certified welders and machined to 0.01 mm precision in single piece

NexT 3.0 17” 2D/3D graphic touchscreen control

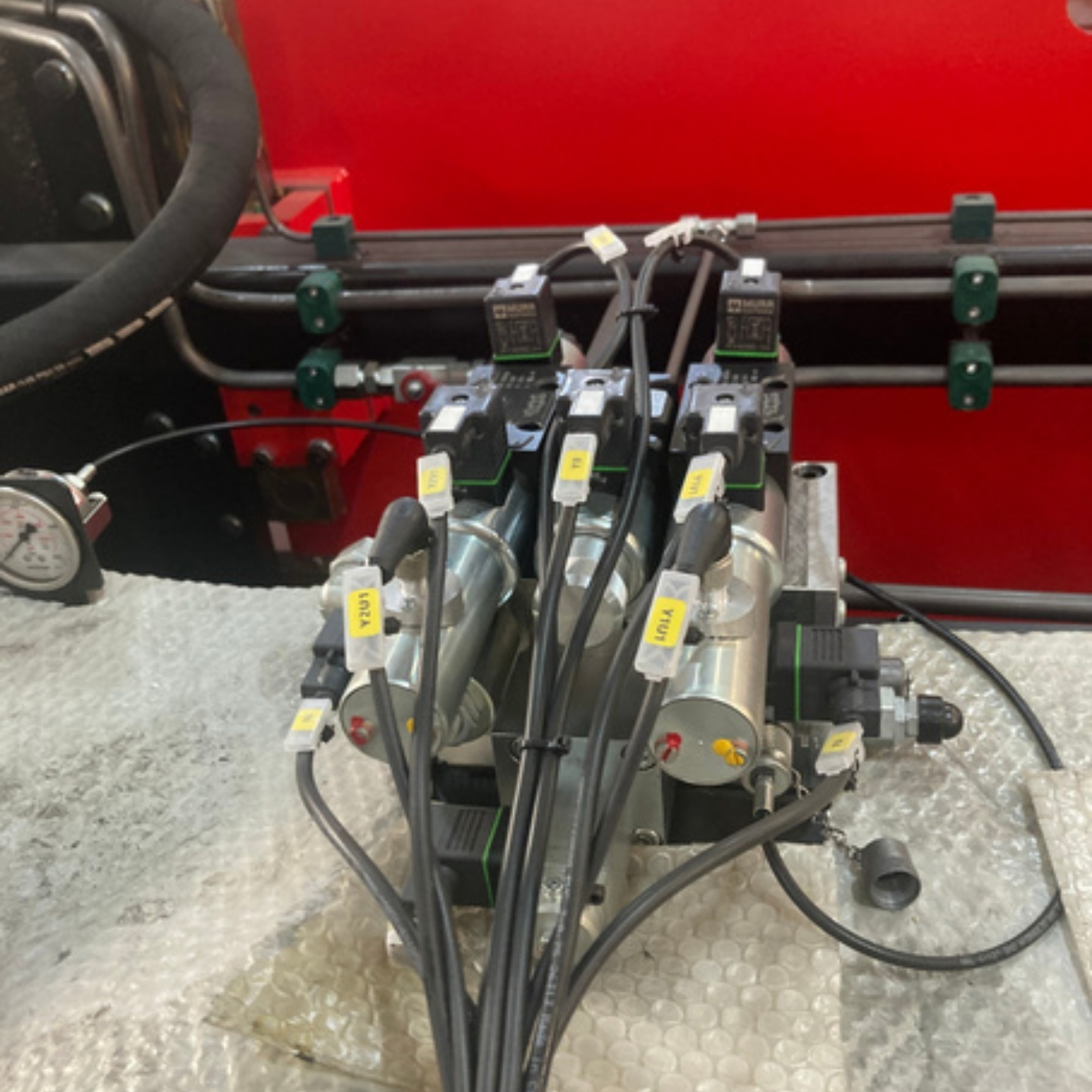

Dependable servo hydraulic system provided by Hoerbieger

Honed. chrome covered cylinders with high precision ground pistons

Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend

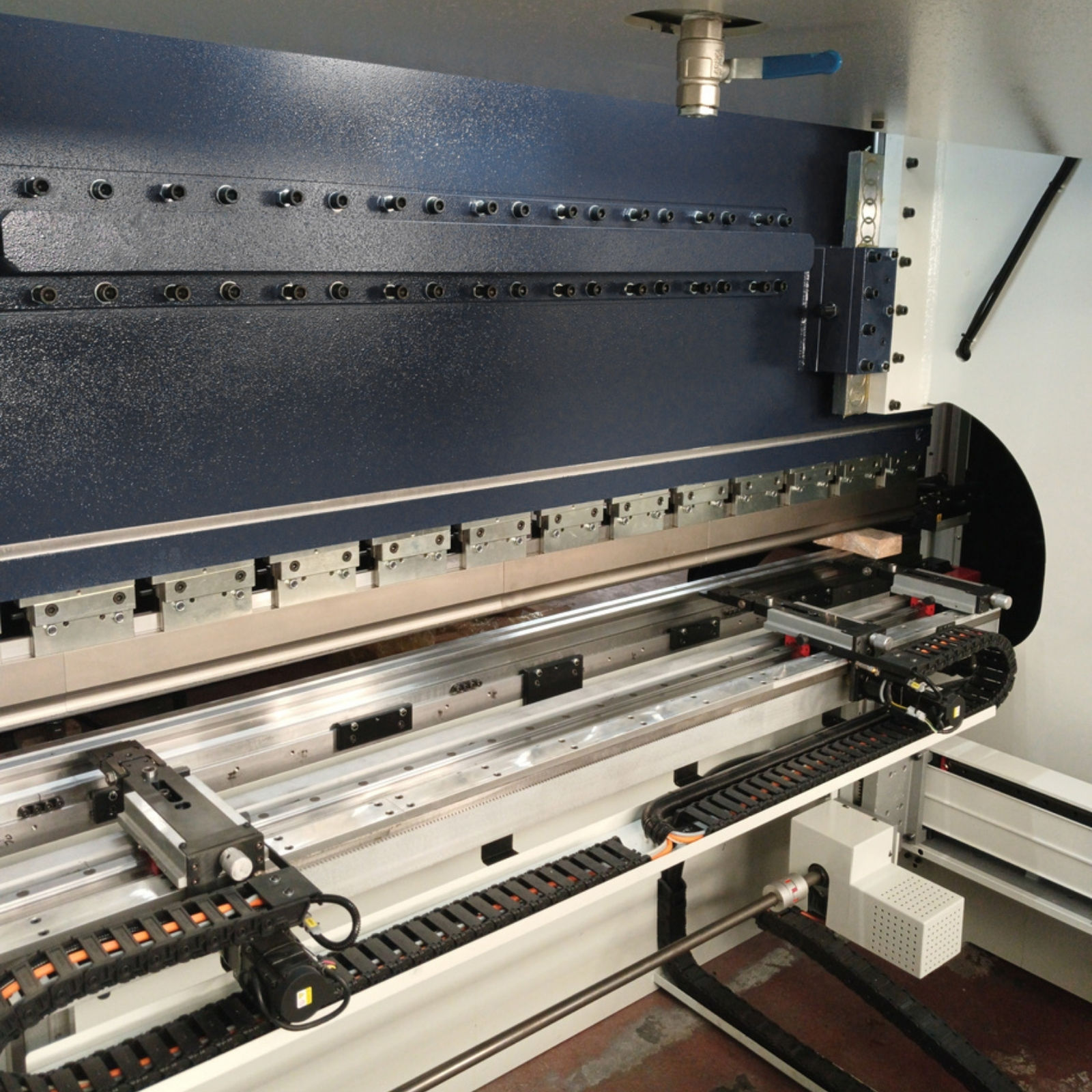

4 axis backgauge (X.R.Z1.Z2) running on ballscrews with servo motors to easily gauge complex parts

Hydraulic punch holder with vertical mount. auto seat and auto align function

European (or American) die holder with quick change mechanism

High stroke and daylight for deep box/panel bending

500 mm throat depth to utilize full length and deep bends

High resolution linear scales with an accuracy of 0.01 mm for precise bending

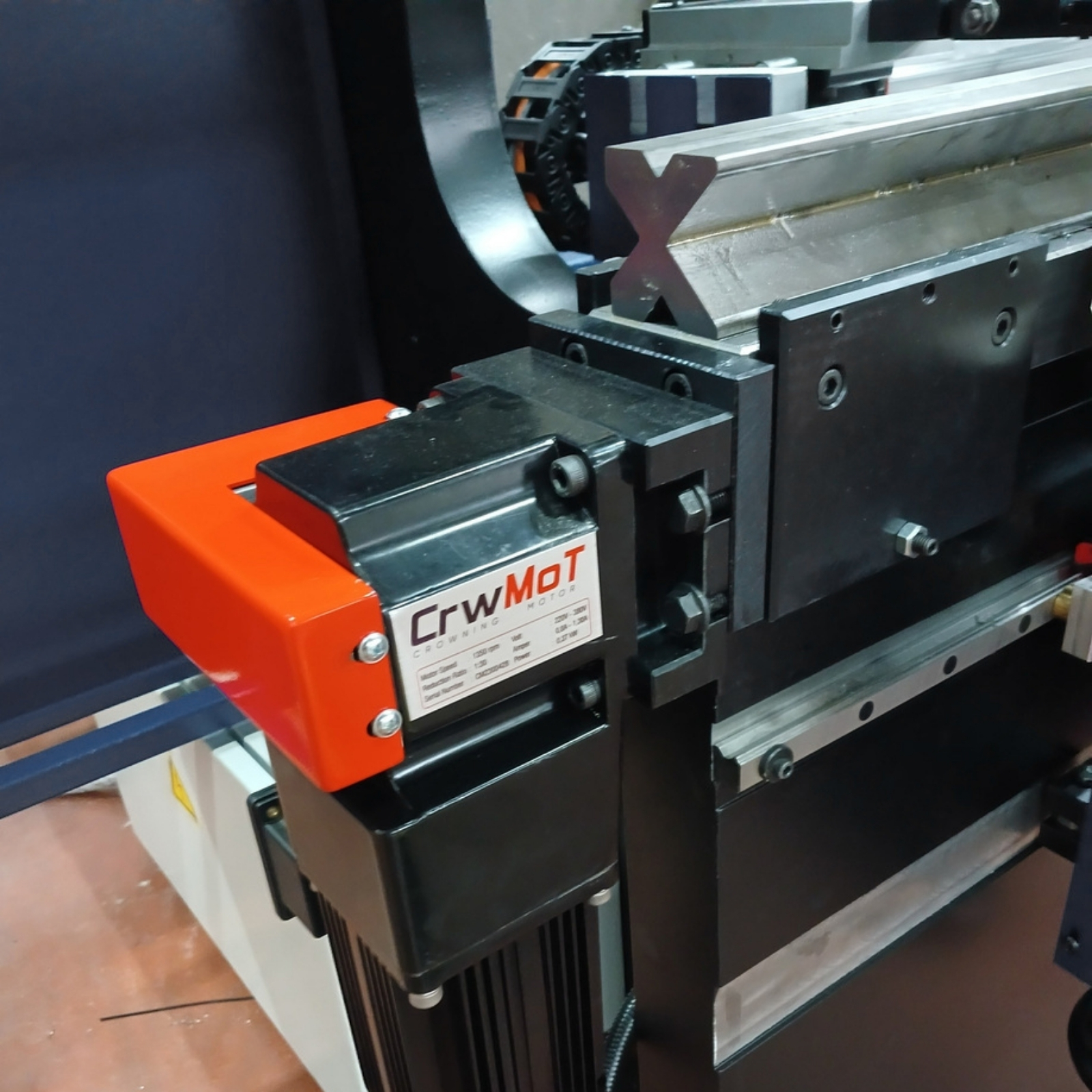

Automatic crowning of die bed for even angles along full length of bend

Front support arms sliding on linear guides to easily gauge small parts

Optional Features

Front laser guards for finger protection

DiamondForm LED bend guide system

Custom design throat. stroke and daylight

CNC controlled bending aids in front to easily handle large plates

Real time angle measurement and correction system

Large selection of punches and dies

Tandem preparation

Automatic lubrication system

TYPE Bending Length Bending Tonnage Stroke Distance Between Frames Distance Between Feets Y-Axis Descent Speed Y-Axis Pressing Speed Y-Axis Return Speed X-Axis Stroke R-Axis Stroke X-Axis Speed R-Axis Speed Engine Oil Tank These are the machine shipping dimensions. T. Depth Table Height Table Width Weight
Length Machine Width Height Width
A
mm		 Ton I
mm		 J
mm		 B
mm		 mm/sec mm/sec mm/sec mm mm mm/sec mm/sec kw lt L
mm		 D
mm		 G
mm		 E
mm		 H
mm		 F
mm		 K
mm		 kg
D-RPB 2100-40 2100 40 140 380 1650 180 10 160 800 250 500 170 5.5 100 2800 1950 2200 2100 300 860 90 4050
D-RPB 2100-60 2100 60 180 420 1650 180 10 160 800 250 500 170 7.5 100 2820 2100 2350 2250 400 860 90 4400
D-RPB 2600-100 2600 100 280 520 2100 180 10 160 800 250 500 170 11 250 3450 1750 2830 2250 500 860 90 7250
D-RPB 2600-135 2600 135 280 520 2100 180 10 160 800 250 500 170 11 250 3450 1750 2830 2250 500 860 90 7750
D-RPB 3100-100 3100 100 280 520 2550 180 10 160 800 250 500 170 11 250 4000 1750 2830 2250 500 860 90 7850
D-RPB 3100-135 3100 135 280 520 2550 180 10 160 800 250 500 170 11 250 4000 1750 2830 2250 500 860 90 8100
D-RPB 3100-175 3100 175 280 520 2550 180 10 160 800 250 500 170 15 250 4000 1850 2960 2300 500 930 90 9850
D-RPB 3100-220 3100 220 280 520 2550 180 10 160 800 250 500 170 15 250 4000 1850 2960 2300 500 930 90 11250
D-RPB 3100-300 3100 300 300 540 2550 180 10 160 800 250 500 170 22 250 4000 2100 3050 2600 500 930 120 14750
D-RPB 3100-400 3100 400 330 590 2550 120 10 160 800 250 500 170 30 400 4050 2250 3300 2800 600 1030 120 19950
D-RPB 3700-135 3700 135 280 520 3100 180 10 160 800 250 500 170 11 250 4450 1750 2830 2250 500 860 90 9150
D-RPB 3700-175 3700 175 280 520 3100 180 10 160 800 250 500 170 15 250 4500 1850 2960 2300 500 930 90 11650
D-RPB 3700-220 3700 220 280 520 3100 180 10 160 800 250 500 170 15 250 4500 1850 2960 2300 500 930 90 12750
D-RPB 3700-300 3700 300 300 540 3100 180 10 160 800 250 500 170 22 250 4550 2100 3050 2600 500 930 120 15850
D-RPB 3700-400 3700 400 330 590 3100 120 10 100 800 250 500 170 30 400 4650 2250 3300 2800 600 1030 120 21650
D-RPB 4100-100 4100 100 280 520 3550 180 10 160 800 250 500 170 11 250 4900 1750 2830 2250 500 860 90 9250
D-RPB 4100-135 4100 135 280 520 3550 180 10 160 800 250 500 170 11 250 4900 1750 2830 2250 500 860 90 9950
D-RPB 4100-175 4100 175 280 520 3550 180 10 160 800 250 500 170 15 250 4950 1850 2960 2300 500 930 90 12250
D-RPB 4100-220 4100 220 280 520 3550 180 10 160 800 250 500 170 15 250 4950 1850 2960 2300 500 930 90 13750
D-RPB 4100-300 4100 300 300 540 3550 180 10 160 800 250 500 170 22 250 5000 2100 3050 2600 500 930 120 16450
D-RPB 4100-400 4100 400 330 590 3550 100 8 100 800 250 500 170 30 400 5100 2250 3300 2800 600 1030 120 22750
D-RPB 5100-220 5100 220 280 520 4100 180 10 160 800 250 500 170 15 250 5950 1850 3050 2300 500 1050 90 17550
D-RPB 5100-300 5100 300 300 540 4100 110 9 110 800 250 500 170 22 250 5890 2100 3200 2700 500 1050 120 21200
D-RPB 5100-400 5100 400 330 590 4100 100 8 100 800 250 500 170 30 400 5950 2250 3400 2800 600 1100 120 27250
D-RPB 6100-220 6100 220 280 520 5100 120 10 120 800 250 500 170 15 250 6850 1950 3050 2300 500 1050 120 20350
D-RPB 6100-300 6100 300 300 540 5100 110 9 110 800 250 500 170 22 250 6890 2100 3200 2700 500 1050 120 24100
D-RPB 6100-400 6100 400 330 590 5100 100 8 100 800 250 500 170 30 400 6950 2250 3400 2800 600 1100 120 30750
